Packaged & Integrated Systems
High-Concentration Ozonated Water Systems, 2–20 t/h
Packaged ozone-generation and gas–liquid mixing systems with catalogue water-flow options of 2, 4, 6, 12 and 20 t/h. The target concentration, measurement point and acceptance method are confirmed for each project.
- Capacity / scope
- 2–20 t/h water flow
- Feed Gas
- Oxygen
PRODUCT OVERVIEW
What this equipment is for
This packaged product combines ozone production with a defined ozonated-water duty. Selection begins with water flow but must also account for source-water quality, required point-of-use concentration, contact conditions, materials and operating procedure. No treatment result is inferred from nominal flow alone.
How to specify an ozonated-water system
Provide normal and peak water flow, source-water data, target concentration at a defined measurement point, operating schedule and the intended process duty. These inputs define the equipment layout, gas supply, mixing and monitoring boundary.
Best fit for
- Defined process-water or wash-water duties
- Packaged point-of-use ozonated-water production
- Projects with a measurable concentration target
Selection factors
- 2, 4, 6, 12 or 20 t/h water-flow class
- Water quality and ozone demand
- Target concentration and sampling point
- Materials, contact time and operating procedure
System interfaces to confirm
- Incoming water pressure and quality
- Oxygen and electrical supply
- Point-of-use piping and return conditions
- Concentration monitoring and safety controls
What this page defines
This page owns packaged ozonated-water production. It does not establish whether ozone is suitable for a food, sanitation or process duty; that decision requires application validation and the applicable local requirements.
Key selection points
- Catalogue water-flow options: 2, 4, 6, 12 and 20 t/h
- Target concentration and measurement method confirmed by project
- Single-pump and dual-pump equipment layouts
- Configuration selected against water quality and sanitation target
NEXT DECISION
Use the right page for the next question
Define a food-process duty
Review process validation, materials and regulatory boundaries before selecting equipment for food or beverage use.
View food-process solutionCompare a generation-only cabinet
Use the integrated ozonator page when the water-mixing package is outside the required supply boundary.
View integrated ozonatorsEngineer project-scale transfer
Use a separate dosing system when contact hydraulics and multi-point distribution define the project.

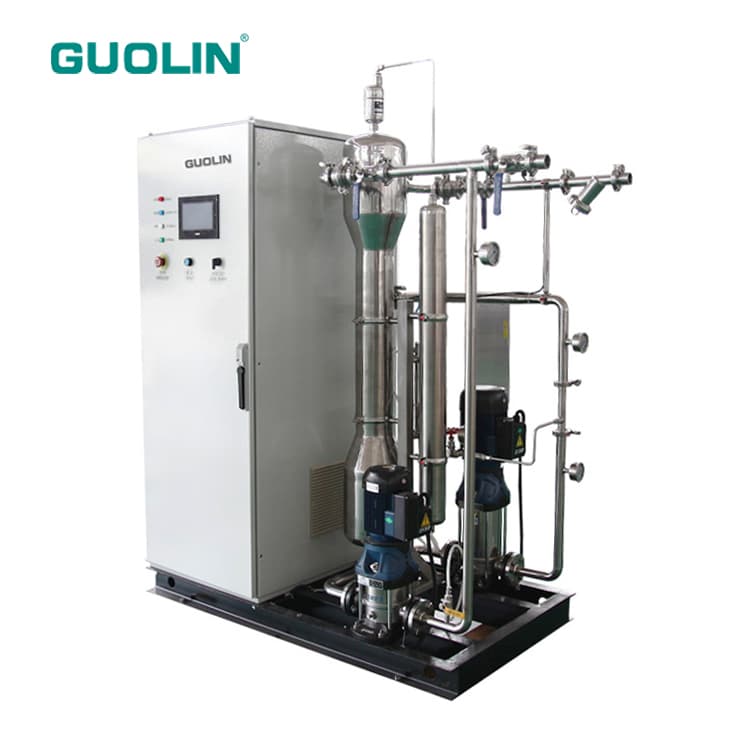

View dosing systemsEquipment views
Ozonated-water system FAQs
What water-flow sizes are listed in the catalogue?
The catalogue lists 2, 4, 6, 12 and 20 t/h configurations. The selected flow class does not by itself determine delivered ozone concentration or treatment performance.
What concentration can the system deliver?
The target value, sampling point, water conditions and acceptance method must be confirmed for the project. A concentration figure should not be transferred between applications without those conditions.
Does this system guarantee a sanitation result?
No. A sanitation result depends on the organism or process target, concentration at the point of use, contact time, water quality, materials and a validated operating procedure.
SYSTEM INTEGRATION
Built and checked as a coordinated system
Generator selection, power equipment, controls and supporting subsystems are reviewed together before the final project scope is confirmed.
