Core Ozone Generators

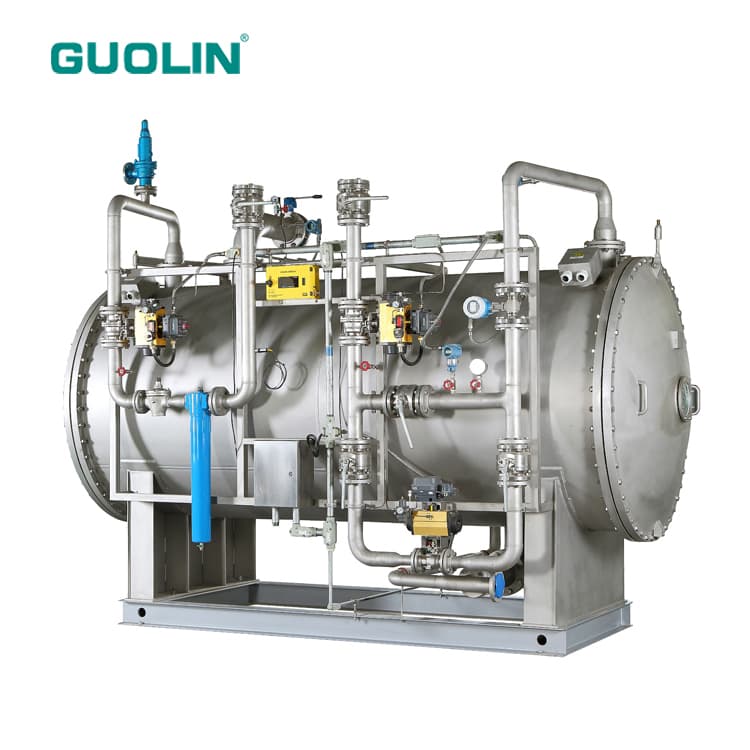

CF-G-2 air-source and oxygen-source ozone generator configurations for large continuous-treatment plants. The website selection band is 10–150 kg/h; the published range and operating figures depend on feed gas and model.
Selection boundary: This is a 10–150 kg/h website selection band. Air-source configurations on this page extend to 60 kg/h and oxygen-source configurations extend to 150 kg/h. Compare the 1–10 kg/h page for a boundary duty.
PRODUCT OVERVIEW
This page groups the upper end of GUOLIN's published CF-G-2 equipment tables into a practical 10–150 kg/h buyer selection range. The air-source table extends to 60 kg/h and the oxygen-source table extends to 150 kg/h. A complete plant may also require oxygen supply, cooling, dosing, contact, off-gas treatment, controls and project-specific redundancy.
Use this page when calculated ozone duty exceeds 10 kg/h or the plant requires a multi-unit high-capacity arrangement. Select the feed-gas route, unit duty, redundancy, turndown, cooling, transfer process and controls together rather than treating kg/h output as the complete specification.
This page owns the 10–150 kg/h generator selection task. Published CF-G-2 tables begin at 1 kg/h, so duties near 10 kg/h should also be compared with the 1–10 kg/h page. Requirements outside the published table require a project review and a confirmed proposal; they are not implied by this page.
The catalogue figures below identify two published configuration routes. They are comparison inputs and do not represent every operating condition.
Final specifications are confirmed against project conditions.
| Configuration | Ozone output | Concentration | Specific power |
|---|---|---|---|
| CF-G-2 · Air source | 10–60 kg/h | 2–2.5 wt% | 14–16 kWh/kg O₃ |
| CF-G-2 · Oxygen source | 10–150 kg/h | 8–10 wt% | 7–7.5 kWh/kg O₃ |
NEXT DECISION
Review the 1–10 kg/h selection band when normal or standby-unit duty is close to 10 kg/h.
View 1–10 kg/h rangeUse the solution pages to determine the ozone process position, transfer arrangement and validation inputs.
Choose by applicationReview containerized integration when the project needs a defined transportable equipment boundary.
View containerized systems
For the selection band shown on this page, the air-source CF-G-2 table covers 10–60 kg/h and the oxygen-source table covers 10–150 kg/h. The wider published tables begin at 1 kg/h, so a boundary duty should be compared with the 1–10 kg/h page.
No. The required concentration, feed-gas route, normal and peak duty, cooling conditions, transfer process, redundancy, controls and site interfaces must be confirmed together.
They require project-specific engineering and a confirmed technical proposal. This page does not represent a standard model or supply commitment above the published oxygen-source table.
No. Those subsystems can be included in a complete project, but the final supply boundary is defined in the quotation for the application and site.
SYSTEM INTEGRATION

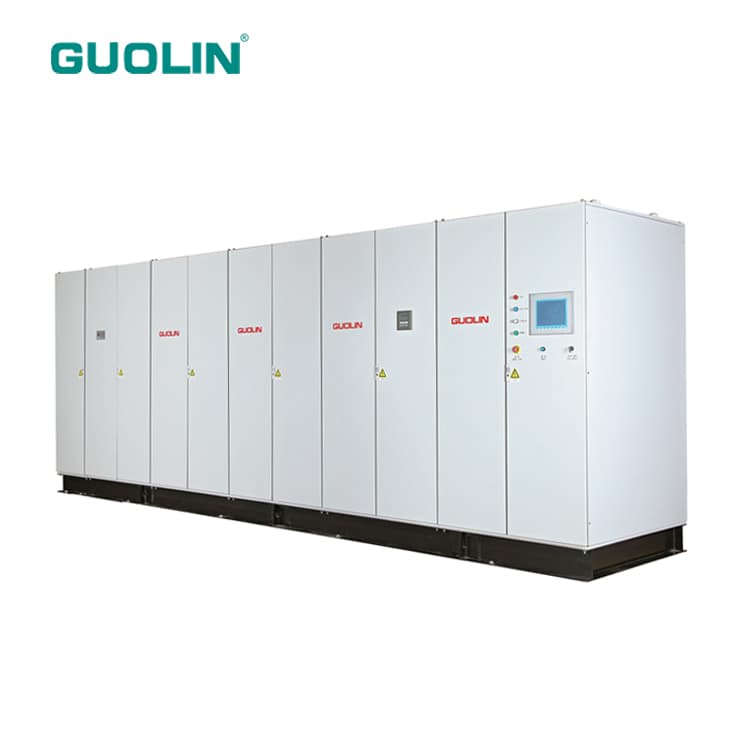

Generator selection, power equipment, controls and supporting subsystems are reviewed together before the final project scope is confirmed.
